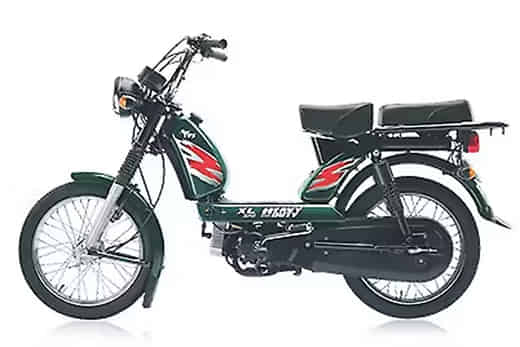

TVS Heavy Duty Super XL 2011-2017 Specifications
TVS Heavy Duty Super XL 2011-2017 have 2 variants ranging from 28324 to 28575. Heavy Duty Super XL 2011-2017 is powered by a 1 cylinder, 69.9 cc, two-stroke single-cylinder engine.
It is able to produce 5 Nm @ 3750 rpm torque and 3.5 bhp @ 5000 rpm power.
Keep scrolling to explore detailed configuration, features and technical specs of Heavy Duty Super XL 2011-2017.
TVS Heavy Duty Super XL 2011-2017 Safety Features
This Moped bike comes loaded with Hazard Warning Switch, Halogen Turn Signal, Hazard Warning Indicator, Pillion Grabrail from safety point of view.TVS Heavy Duty Super XL 2011-2017 Weight & Height
The seat height of TVS Heavy Duty Super XL 2011-2017 is 770 mm and the kerb weight is N/A. In other dimensions Heavy Duty Super XL 2011-2017 has 2020 mm Length, 750 mm Width, 1110 mm Height, 1222 mm Wheelbase, 160 mm Ground Clearance, Moped Body Type.Comfort in TVS Heavy Duty Super XL 2011-2017
From Comfort perspective, Heavy Duty Super XL 2011-2017 have Pillion Footrest, Split Seat Seat Style, USB Charger Port, Analogue Console Type, Self Start Start Type, Analogue Instrument Console.TVS Heavy Duty Super XL 2011-2017 Body
TVS Heavy Duty Super XL 2011-2017 has telescopic spring-type hydraulic suspensions with 60/100-16 front tyre and swing arm with hydraulic shock absorbers suspensions with 60/100-16 rear tyre. It comes with a Alloy.TVS Heavy Duty Super XL 2011-2017 Alternatives
Main Competitors of Heavy Duty Super XL 2011-2017 bike are Hero HF Deluxe, TVS Sport, Hero Splendor Plus, Hero Splendor Plus Xtec, Honda Shine 100, Honda Shine, Bajaj Platina 110, Hero HF 100, Bajaj Platina 100, TVS Radeon.Keep scrolling to explore detailed configuration, features and technical specs of Heavy Duty Super XL 2011-2017.
Key Highlights | TVS Heavy Duty Super XL 2011-2017 |
---|---|
Engine Capacity | 69.9 cc |
Power | 3.5 bhp @ 5000 rpm |
Seat Height | 770 mm |
Explore more on TVS Heavy Duty Super XL 2011-2017

₹ 28,324 - ₹ 28,575 *
(Price before discontinued)TVS Heavy Duty Super XL 2011-2017 is Discontinued.
Key Specifications of Heavy Duty Super XL 2011-2017
Key | Specs Value |
---|---|
Seat Height | 770 mm |
Front Brake Type | Drum |
Rear Brake Type | Drum |
Wheel Type | Alloy |
Tachometer | Analogue |
Ad
Detailed Specifications of TVS Heavy Duty Super XL 2011-2017
Select Variants
Brakes, Suspension & Tyres
Rear Wheel Size | 60/100-16 |
Wheel Type | Alloy |
Braking System | CBS |
Front Wheel Size | 60/100-16 |
Front Suspension | telescopic spring-type hydraulic |
Rear Suspension | swing arm with hydraulic shock absorbers |
Front Tyre Size | 60/100-16 |
Rear Tyre Size | 60/100-16 |
Front Type | Drum |
Tubeless Tyres | No |
Rear Type | Drum |
Rear Disc/Drum Size | 110 mm |
Tyre Size Spare | No |
Safety
Hazard Warning Switch | Yes |
Radial Tyres | No |
Turn Signal | Halogen |
Hazard Warning Indicator | Yes |
Pass Light | No |
Pillion Grabrail | Yes |
ABS - Anti-lock braking system | No |
Comfort & Convenience
Pillion Backrest | No |
Pillion Footrest | Yes |
Call/SMS Alerts | No |
GPS & Navigation | No |
Seat Style | Split Seat |
Engine Kill Switch | No |
USB Charger Port | Yes |
Console Type | Analogue |
Start Type | Self Start |
Instrument Console | Analogue |
Instrumentation
Riding Modes Switch | No |
Touch Screen Display | No |
Tachometer | Analogue |
Speedometer | Analogue |
Engine & Transmission
Engine Capacity | 69.9 cc |
Engine Type | two-stroke single-cylinder engine |
No. of Cylinders | 1 |
No. of valves per cylinder | 2 |
Transmission Type | Manual |
Configuration | single cylinder |
Fuelling | ETFi |
Max Torque | 5 Nm @ 3750 rpm |
Cooling type | air cooled |
Max Power | 3.5 bhp @ 5000 rpm |
Bore x Stroke | 46 mm x 42 mm |
Dimensions & Capacity
Length | 2020 mm |
Width | 750 mm |
Height | 1110 mm |
Wheelbase | 1222 mm |
Ground Clearance | 160 mm |
Body Type | Moped |
Seat Height | 770 mm |
Exterior
Daytime Running Lights | No |
LED headlight | No |
Warranty
Basic Warranty | 3 years/36000 Kms |
