TVS Raider 125 DrumvsTVS Raider 125 Single Seat

TVS Raider 125 vs TVS Raider 125: Specifications Comparison

• Safety

  AHO (Automatic Headlight On), Pass Light, Pillion Grabrail, Radial Tyres

  AHO (Automatic Headlight On)
  Pass Light
  Pillion Grabrail
  Side Stand Alarm
  Turn Signal	Halogen	Halogen
  Power Modes

• Comfort & Convenience

  Average Speed Indicator, Call/SMS Alerts, Geo Fencing, Low Battery Indicator

  Average Speed Indicator
  Low Battery Indicator
  Pillion Footrest
  Riding Modes	2	2
  Service Reminder Indicator
  GPS & Navigation
  Console Type	Digital	Digital
  Distance to Empty Indicator
  Instrument Console	Digital	Digital
  Seat Style	Single	Single
  Side Stand Indicator
  Start Type	Self Start	Self Start
  USB Charger Port

• Brakes, Suspension & Tyres

  Braking System, Calliper Type, Front Disc Size, Front Suspension Preload Adjuster

  Braking System	SBT	SBT
  Calliper Type	Fixed	Fixed
  Front Disc Size	240	240
  Front Tyre Pressure (Rider)	25	25
  Front Tyre Pressure (Rider & Pillion)	25	25
  Front Wheel Size	R17	R17
  Rear Suspension Preload Adjuster
  Rear Tyre Pressure (Rider)	28	28
  Rear Tyre Pressure (Rider & Pillion)	32	32
  Rear Wheel Size	R17	R17
  Wheel Type	Alloy	Alloy
  Front Suspension	Telescopic	Telescopic
  Rear Suspension	Monoshock& 5-step adj&Gas charged	Monoshock& 5-step adj&Gas charged
  Front Tyre Size	80/100 R17	80/100 R17
  Rear Tyre Size	100/90 R17	100/90 R17
  Front Brake	Disc	Disc
  Rear Brake	Drum	Drum
  Tubeless Tyres

• Engine & Transmission

  Gear Shifting Pattern, Ignition, Spark Plugs, Engine Capacity

  Gear Shifting Pattern	1 Down 5 Up	1 Down 5 Up
  Ignition	CDI	CDI
  Spark Plugs
  Engine Capacity	124.8 cc	124.8 cc
  Engine Type	Air& Oil cooled single cylinder& SI	Air& Oil cooled single cylinder& SI
  No. of Cylinders	1	1
  No. of valves per cylinder	2	2
  Transmission Type	Manual	Manual
  Bore x Stroke	53.5 mm x 55.5 mm	53.5 mm x 55.5 mm
  Cooling type	Air-oil cooled	Air-oil cooled
  Fuelling	EcoThrust Fuel Injection	EcoThrust Fuel Injection
  Max Power	11.13 bhp @ 7500 rpm	11.13 bhp @ 7500 rpm
  Max Torque	11.2 Nm @ 6000 rpm	11.2 Nm @ 6000 rpm
  Mileage (Claimed)	56.7 kmpl	56.7 kmpl
  Number of Gears	5 Speed	5 Speed

• Instrumentation

  Riding Modes Switch, Touch Screen Display, Fuel level guage, Tachometer

  Riding Modes Switch
  Fuel level guage	Digital	Digital
  Tachometer	Digital	Digital
  Speedometer	Digital	Digital
  Odometer	Digital	Digital

• Dimensions & Capacity

  Length, Width, Height, Wheelbase

  Length	2070 mm	2070 mm
  Width	785 mm	785 mm
  Height	1028 mm	1028 mm
  Wheelbase	1326 mm	1326 mm
  Ground Clearance	180 mm	180 mm
  Fuel Tank Capacity	10 Litres	10 Litres
  Engine Oil Capacity	1 Litres	1 Litres
  Body Type	Commuter	Commuter
  Seat Height	780 mm	780 mm

• Exterior

  Daytime Running Lights, LED headlight

  Daytime Running Lights
  LED headlight

• Warranty

  Basic Warranty

  Basic Warranty

  5 Years/60000 Kms

  5 Years/60000 Kms

• Entertainment & Communication

  MID (Multi Info Display)

  MID (Multi Info Display)

• Pros & Cons

  Pros, Cons

  Pros	Modern design looks very appealing Seating comfort & riding position are very comfortable Most feature-rich bike in its segment Smooth engine with slick gearbox Handling & ride is very comfortable	Modern design looks very appealing Seating comfort & riding position are very comfortable Most feature-rich bike in its segment Smooth engine with slick gearbox Handling & ride is very comfortable
  Cons	Front disc brake lever requires effort for good response SmartXonnect features lag & hang at times Top variant is pricey	Front disc brake lever requires effort for good response SmartXonnect features lag & hang at times Top variant is pricey

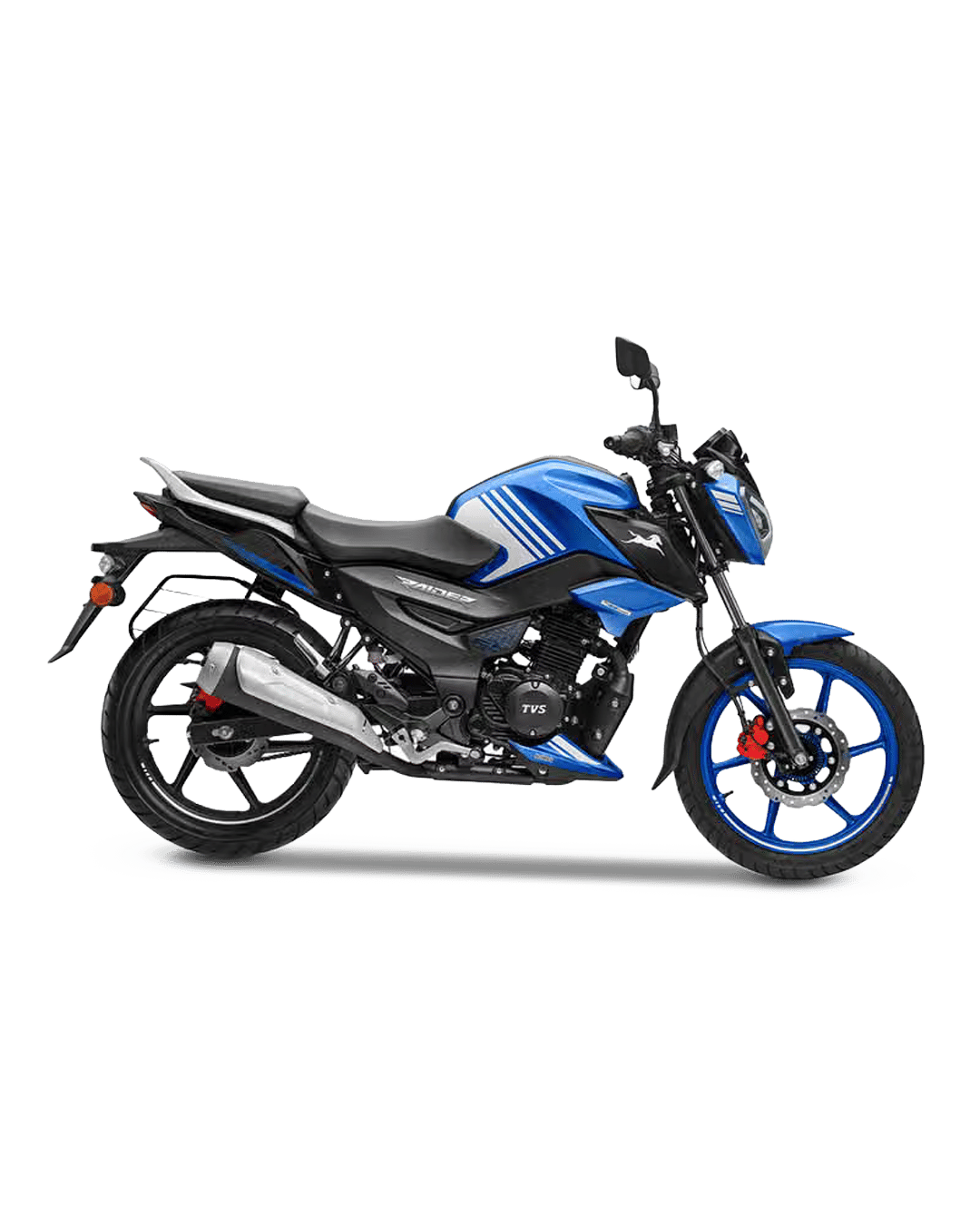

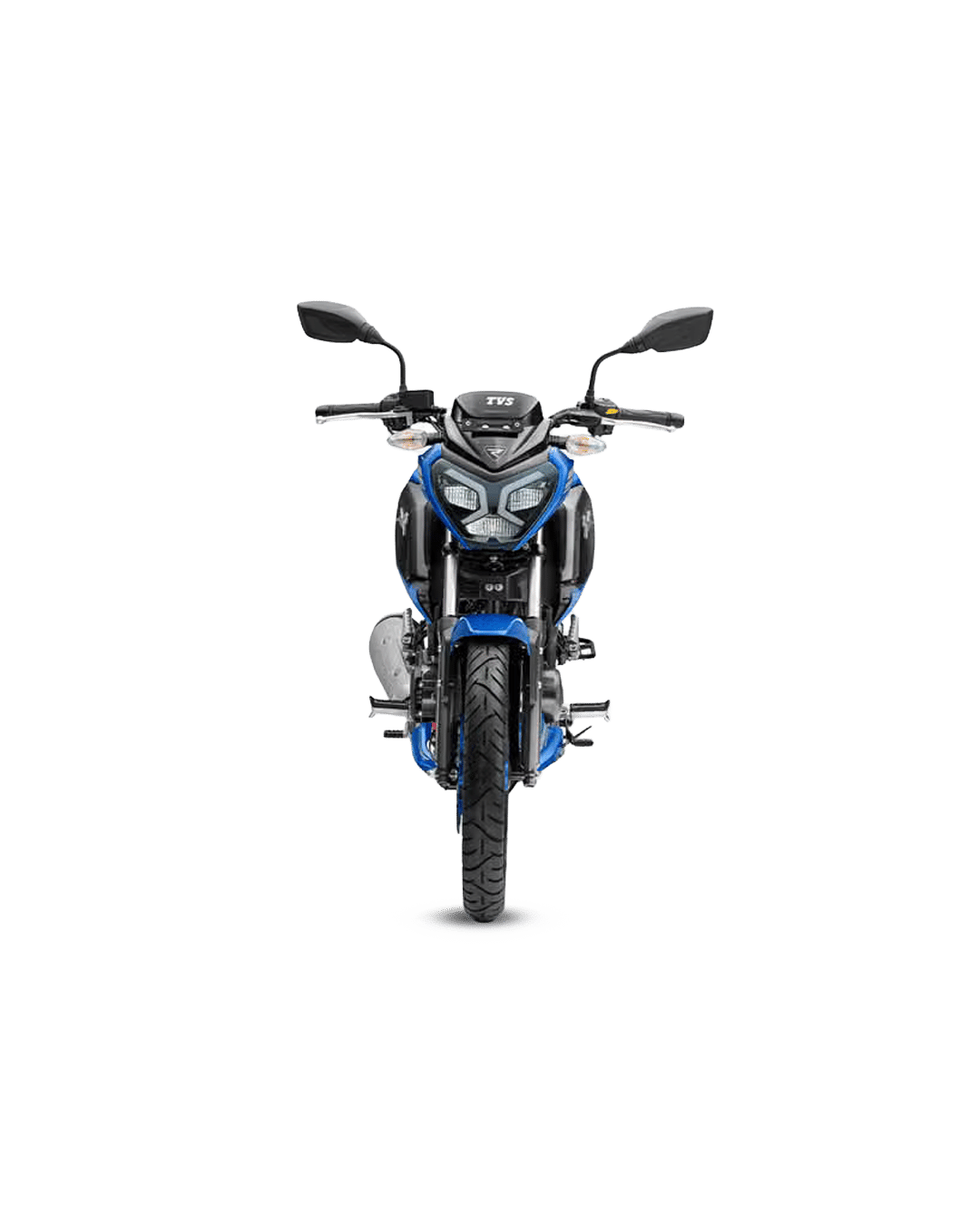

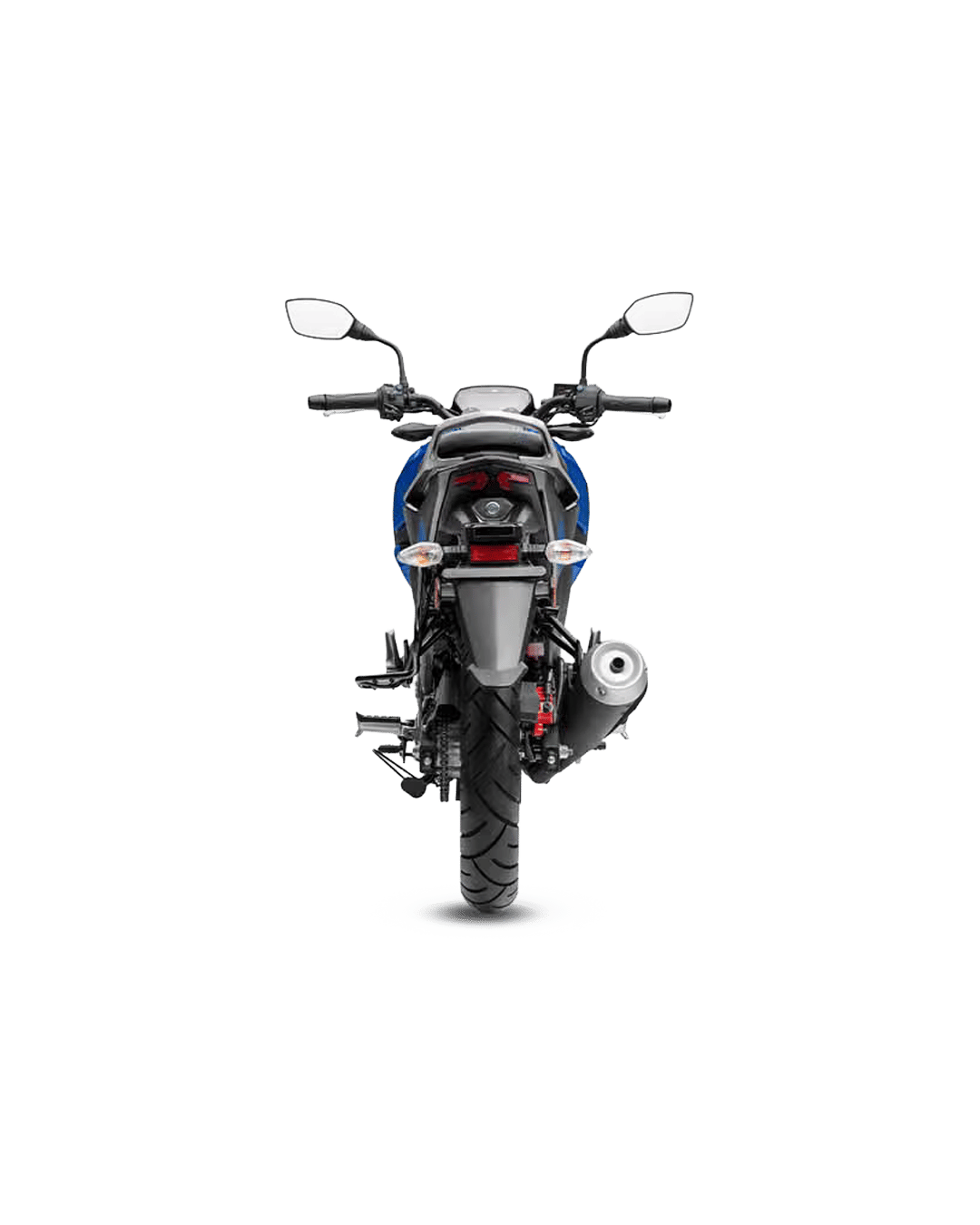

Visual Gallery

TVS Raider 125TVS Raider 125
