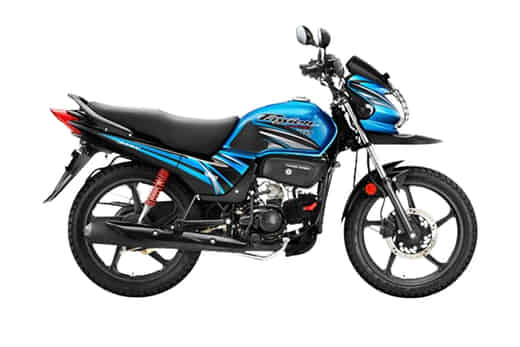

Hero Passion Pro TR 2014-2023 Specifications

Passion Pro TR 2014-2023 is available in India at a price tag of 45000. Passion Pro TR 2014-2023 is powered by a 1 cylinder, 97 cc, four-stroke ?. It is able to produce 8 Nm @ 4500 rpm torque and 7.7 bhp @ 7500 rpm power.

Hero Passion Pro TR 2014-2023 Safety Features

This Commuter bike comes loaded with Halogen Turn Signal from safety point of view.

Hero Passion Pro TR 2014-2023 Weight & Height

The seat height of Hero Passion Pro TR 2014-2023 is 795 mm and the kerb weight is 119 kg. In other dimensions Passion Pro TR 2014-2023 has 1980 mm Length, 840 mm Width, 1085 mm Height, 1235 mm Wheelbase, 165 mm Ground Clearance, 12.8 Litres Fuel Tank Capacity , commuter Body Type.

Comfort in Hero Passion Pro TR 2014-2023

From Comfort perspective, Passion Pro TR 2014-2023 have Analogue Console Type, Analogue Instrument Console, Single Cylinder Seat Style, Self Start Start Type.

Hero Passion Pro TR 2014-2023 Body

Hero Passion Pro TR 2014-2023 has Telescopic Hydraulic Shock Absorbers suspensions with 2.75 x 18? front tyre and Swing Arm with 5 Step Adjustable Type Hydraulic suspensions with 3.00 x 18? rear tyre. It comes with a Alloy.

Hero Passion Pro TR 2014-2023 Alternatives

Main Competitors of Passion Pro TR 2014-2023 bike are Hero HF Deluxe, TVS Sport, Honda Shine 100, Hero Splendor Plus, Hero Splendor Plus Xtec, Honda Shine, TVS Radeon, Hero Super Splendor, Bajaj Platina 100, Hero HF 100.

Keep scrolling to explore detailed configuration, features and technical specs of Passion Pro TR 2014-2023.
Key HighlightsHero Passion Pro TR 2014-2023
Engine Capacity97 cc
Power7.7 bhp @ 7500 rpm
Seat Height795 mm
Weight119 kg
Read more

Explore more on Hero Passion Pro TR 2014-2023

Hero Passion Pro TR 2014-2023

Hero Passion Pro TR 2014-2023

₹ 45,000 - ₹ 55,114 *
(Price before discontinued)
Hero Passion Pro TR 2014-2023 is Discontinued.

Key Specifications of Passion Pro TR 2014-2023

Number of gears4
Seat Height795 mm
Mileage84 kmpl
Fuel Tank Capacity12.8 Litres
Kerb Weight119 kg
Read more
Ad

Detailed Specifications of Hero Passion Pro TR 2014-2023

Brakes, Suspension & Tyres

Front Disc Size240
Front Suspension Preload AdjusterNo
Front Wheel Size18
Rear Suspension Preload AdjusterNo
Rear Wheel Size18
Wheel TypeAlloy
Front SuspensionTelescopic Hydraulic Shock Absorbers
Rear SuspensionSwing Arm with 5 Step Adjustable Type Hydraulic
Front Tyre Size2.75 x 18?
Rear Tyre Size3.00 x 18?
Front TypeDisc
Rear Disc/Drum Size130 mm
Tubeless TyresNo

Comfort & Convenience

Low Oil IndicatorNo
Service Reminder IndicatorNo
Console TypeAnalogue
Distance to Empty IndicatorNo
Engine Kill SwitchNo
Instrument ConsoleAnalogue
Seat StyleSingle Cylinder
Side Stand IndicatorNo
Start TypeSelf Start

Engine & Transmission

Spark PlugsNo
Engine Capacity97 cc
Engine Typefour-stroke ?
No. of Cylinders1
No. of valves per cylinder2
Transmission TypeManual
Bore x Stroke50mm x 49mm
ConfigurationSingle Cylinder
Cooling typeAir Cooled oil
FuellingCBFi
Max Power 7.7 bhp @ 7500 rpm
Max Torque8 Nm @ 4500 rpm
Mileage (Claimed)84 kmpl
Number of Gears4

Safety

AHO (Automatic Headlight On)No
Hazard Warning IndicatorNo
Hazard Warning SwitchNo
Side Stand AlarmNo
Pass LightNo
Turn SignalHalogen
ABS - Anti-lock braking system No
Slipper ClutchNo

Dimensions & Capacity

Length1980 mm
Width840 mm
Height1085 mm
Wheelbase1235 mm
Ground Clearance165 mm
Fuel Tank Capacity 12.8 Litres
Body Typecommuter
Seat Height795 mm
Unladden/Kerb Weight119 kg

Exterior

Daytime Running LightsNo
LED headlightNo

Instrumentation

Fuel level guageDigital
TachometerAnalogue
SpeedometerAnalogue
OdometerAnalogue

Warranty

Basic Warranty1 Years/ 75000 Kms
