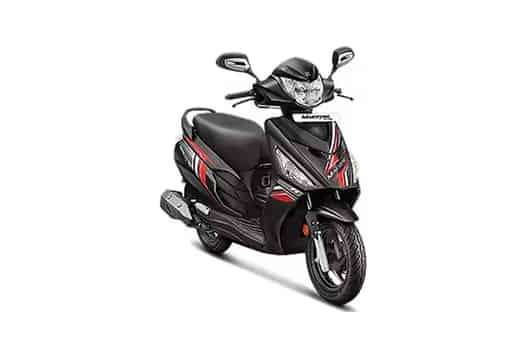

Hero Maestro Edge 110 2016-2020 Specifications

Hero Maestro Edge 110 2016-2020 have 7 variants ranging from 56142 to 87400. Maestro Edge 110 2016-2020 is powered by a 1 cylinder, 110 cc, Air Cooled 4-Stroke SI engine. It is able to produce 8.3 Nm @ 6500 rpm torque and 8.31 bhp @8000 rpm power.

Hero Maestro Edge 110 2016-2020 Safety Features

This bike comes loaded with Hazard Warning Indicator, Hazard Warning Switch, Pass Light, Pillion Grabrail, LED Turn Signal from safety point of view.

Hero Maestro Edge 110 2016-2020 Weight & Height

The seat height of Hero Maestro Edge 110 2016-2020 is 755 mm and the kerb weight is 109 kg. In other dimensions Maestro Edge 110 2016-2020 has 1841 mm Length, 695 mm Width, 1190 mm Height, 1261 mm Wheelbase, 155 mm Ground Clearance, 5.5 Litres Fuel Tank Capacity , Scooter Body Type.

Comfort in Hero Maestro Edge 110 2016-2020

From Comfort perspective, Maestro Edge 110 2016-2020 have Pillion Footrest, Semi-Digital Console Type, Semi-Digital Instrument Console, Single Seat Style, Kick and Self Start Start Type.

Hero Maestro Edge 110 2016-2020 Body

Hero Maestro Edge 110 2016-2020 has Telescopic Hydraulic Shock Absorber suspensions with 90/100-12 front tyre and Unit Swing with Spring Loaded Hydraulic Damper suspensions with 90/100-10 rear tyre. It comes with a High Rigidity under bone type frame and Alloy.

Hero Maestro Edge 110 2016-2020 Alternatives

Main Competitors of Maestro Edge 110 2016-2020 bike are Hero Splendor Plus, Hero HF Deluxe, Honda Shine 100, Hero Splendor Plus Xtec, Honda Shine, Bajaj Platina 110, TVS Raider 125, TVS Radeon, Bajaj Pulsar 125, TVS Sport.

Keep scrolling to explore detailed configuration, features and technical specs of Maestro Edge 110 2016-2020.
Key HighlightsHero Maestro Edge 110 2016-2020
Engine Capacity110 cc
Power8.31 bhp @8000 rpm
Seat Height755 mm
Weight109 kg
Read more

Explore more on Hero Maestro Edge 110 2016-2020

Key Specifications of Maestro Edge 110 2016-2020

Seat Height755 mm
Mileage51 kmpl
Fuel Tank Capacity5.5 Litres
Kerb Weight109 kg
Front Brake TypeDrum
Read more
Ad

Detailed Specifications of Hero Maestro Edge 110 2016-2020

Select Variants

Brakes, Suspension & Tyres

Braking SystemIBS
Front Disc Size130
Front Suspension Preload AdjusterNo
Front Wheel Size12
Rear Wheel Size10
Wheel TypeAlloy
Front SuspensionTelescopic Hydraulic Shock Absorber
Rear SuspensionUnit Swing with Spring Loaded Hydraulic Damper
Front Tyre Size90/100-12
Rear Tyre Size90/100-10
Front TypeDrum
Rear Disc/Drum Size130 mm
Rear TypeDrum
Tubeless TyresYes
Tyre Size SpareNo

Comfort & Convenience

Call/SMS AlertsNo
Low Oil IndicatorNo
Pillion BackrestNo
Pillion FootrestYes
Service Reminder IndicatorNo
GPS & NavigationNo
Console TypeSemi-Digital
Distance to Empty IndicatorNo
Engine Kill SwitchNo
Instrument ConsoleSemi-Digital
Seat StyleSingle
Side Stand IndicatorNo
Start TypeKick and Self Start

Engine & Transmission

IgnitionECU
Spark PlugsYes
Engine Capacity110 cc
Engine TypeAir Cooled 4-Stroke SI engine
No. of Cylinders1
No. of valves per cylinder2
Transmission TypeAutomatic
Top Speed85 kmph
Bore x Stroke50 mm x 56 mm
ConfigurationSingle Cylinder
Cooling typeAir Cooled
FuellingFuel Injection
Max Power 8.31 bhp @8000 rpm
Max Torque8.3 Nm @ 6500 rpm
Mileage (Claimed)51 kmpl

Instrumentation

Touch Screen DisplayNo
Fuel level guageDigital
TachometerDigital
SpeedometerAnalogue
OdometerDigital

Safety

AHO (Automatic Headlight On)No
Hazard Warning IndicatorYes
Hazard Warning SwitchYes
Side Stand AlarmNo
Pass LightYes
Pillion GrabrailYes
Turn SignalLED
ABS - Anti-lock braking system No
Slipper ClutchNo

Dimensions & Capacity

Length1841 mm
Width695 mm
Height1190 mm
Wheelbase1261 mm
Ground Clearance155 mm
Fuel Tank Capacity 5.5 Litres
Body TypeScooter
Seat Height755 mm
Unladden/Kerb Weight109 kg

Exterior

Daytime Running LightsNo
LED headlightNo

Warranty

Basic Warranty5 Years/60000 Kms

Body & Suspension

Frame TypeHigh Rigidity under bone type
