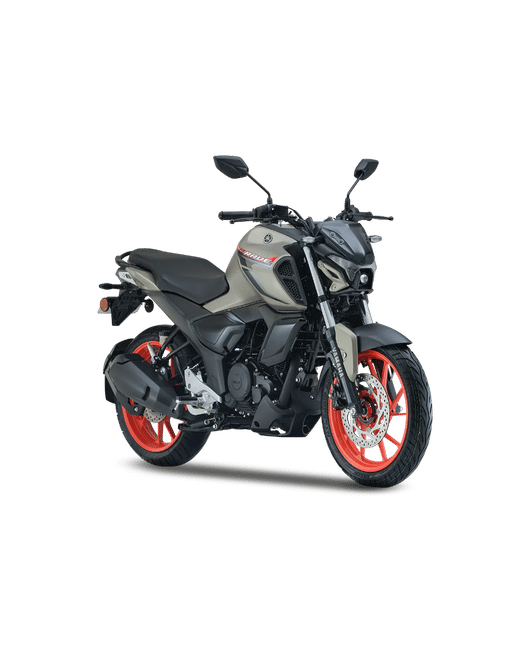

Yamaha FZ Rave Specifications
FZ Rave is available in India at a price tag of ₹ 1.32 Lakh. FZ Rave is powered by a 1 cylinder, 149 cc, Air cooled, 4-stroke, SOHC, 2-valve.
It is able to produce 13.3 Nm @ 5500 rpm torque and 12.23 bhp @ 7250 rpm power.
Keep scrolling to explore detailed configuration, features and technical specs of FZ Rave.
Yamaha FZ Rave Safety Features
This Sports bike comes loaded with Hazard Warning Indicator, Pass Light, Pillion Grabrail, LED Turn Signal, ABS - Anti-lock braking system from safety point of view.Yamaha FZ Rave Weight & Height
The seat height of Yamaha FZ Rave is 790 mm and the kerb weight is 136 kg. In other dimensions FZ Rave has 1990 mm Length, 780 mm Width, 1080 mm Height, 1330 mm Wheelbase, 165 mm Ground Clearance, 13 Litres Fuel Tank Capacity , Sports Body Type.Comfort in Yamaha FZ Rave
From Comfort perspective, FZ Rave have Low Battery Indicator, Low Oil Indicator, Pillion Footrest, Digital Console Type, Engine Kill Switch, Digital Instrument Console, Single Seat Style, Self-Start Start Type.Yamaha FZ Rave Body
Yamaha FZ Rave has Telescopic Fork suspensions with 100/80 R17 front tyre and Swingarm suspensions with 140/60 R17 rear tyre. It comes with a Diamond frame and Alloy.Yamaha FZ Rave Alternatives
Main Competitors of FZ Rave bike are Bajaj Pulsar N160, TVS Apache RTR 160, Bajaj Pulsar NS160, Yamaha FZS FI V4, Bajaj Pulsar 150, Yamaha FZ-S FI, Bajaj Pulsar 220F, Yamaha FZ-S FI V3, Hero Xtreme 125R, Hero Xtreme 160R BS6.Yamaha FZ Rave Latest Price
FZ Rave is available in India starting from ₹ 1.32 Lakh with it's least expensive variant being STD. Most expensive variant of FZ Rave is STD priced at ₹ 1.32 Lakh.Keep scrolling to explore detailed configuration, features and technical specs of FZ Rave.
| Key Highlights | Yamaha FZ Rave |
|---|---|
| Engine Capacity | 149 cc |
| Power | 12.23 bhp @ 7250 rpm |
| Seat Height | 790 mm |
| Weight | 136 kg |
Explore more on Yamaha FZ Rave
Don't miss out on Latest Offers!
Key Specifications of FZ Rave
| Key | Specs Value |
|---|---|
| Number of gears | 5 |
| Seat Height | 790 mm |
| Fuel Tank Capacity | 13 Litres |
| Kerb Weight | 136 kg |
| Front Brake Type | Disc |
Ad
Detailed Specifications of Yamaha FZ Rave
Brakes, Suspension & Tyres
| Braking System | Single Channel |
| Calliper Type | Fixed |
| Front Disc Size | 282 |
| Front Wheel Size | R17 |
| Rear Wheel Size | R17 |
| Wheel Type | Alloy |
| Front Suspension | Telescopic Fork |
| Rear Suspension | Swingarm |
| Front Tyre Size | 100/80 R17 |
| Rear Tyre Size | 140/60 R17 |
| Front Brake | Disc |
| Rear Disc/Drum Size | 220 mm |
| Rear Brake | Disc |
| Tubeless Tyres | Yes |
Comfort & Convenience
| Low Battery Indicator | Yes |
| Low Oil Indicator | Yes |
| Pillion Backrest | No |
| Pillion Footrest | Yes |
| Console Type | Digital |
| Engine Kill Switch | Yes |
| Instrument Console | Digital |
| Seat Style | Single |
| Start Type | Self-Start |
Engine & Transmission
| Gear Shifting Pattern | 1 Down 4 Up |
| Engine Capacity | 149 cc |
| Engine Type | Air cooled, 4-stroke, SOHC, 2-valve |
| No. of Cylinders | 1 |
| No. of valves per cylinder | 2 |
| Transmission Type | Manual |
| Bore x Stroke | 57.3 mm x 57.9 mm |
| Configuration | Single Cylinder |
| Cooling type | Air Cooled |
| Fuelling | Fuel Injection |
| Max Power | 12.23 bhp @ 7250 rpm |
| Max Torque | 13.3 Nm @ 5500 rpm |
| Number of Gears | 5 |
Instrumentation
| Touch Screen Display | No |
| Fuel level guage | Digital |
| Tachometer | Digital |
| Speedometer | Digital |
| Odometer | Digital |
Safety
| Hazard Warning Indicator | Yes |
| Side Stand Alarm | No |
| Pass Light | Yes |
| Pillion Grabrail | Yes |
| Turn Signal | LED |
| ABS - Anti-lock braking system | Yes |
| Brake Assist | No |
| Slipper Clutch | No |
Dimensions & Capacity
| Length | 1990 mm |
| Width | 780 mm |
| Height | 1080 mm |
| Wheelbase | 1330 mm |
| Ground Clearance | 165 mm |
| Fuel Tank Capacity | 13 Litres |
| Body Type | Sports |
| Seat Height | 790 mm |
| Unladden/Kerb Weight | 136 kg |
Exterior
| LED headlight | Yes |
Warranty
| Basic Warranty | 2 Years/30000 Kms |
Body & Suspension
| Frame Type | Diamond |
Entertainment & Communication
| MID (Multi Info Display) | Yes |
