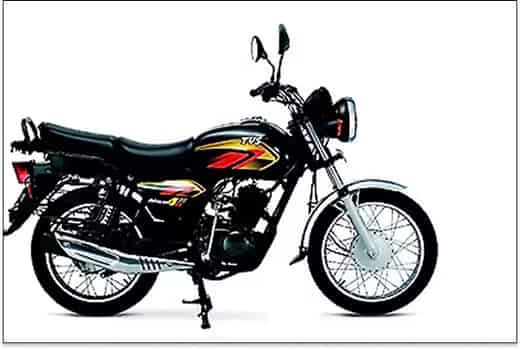

TVS MAX4R 2021-2022 Specifications

TVS MAX4R 2021-2022 have 3 variants ranging from 40405 to 45500. MAX4R 2021-2022 is powered by a 1 cylinder, 109.7 cc, 4-stroke, single-cylinder, air-cooled. It is able to produce 8.33 Nm @ 5500 rpm torque and 8.28 bhp @ 7500 rpm power.

TVS MAX4R 2021-2022 Safety Features

This Commuter bike comes loaded with Hazard Warning Indicator, Hazard Warning Switch, Radial Tyres, Pillion Grabrail, Halogen Turn Signal, CBS ABS - Anti-lock braking system from safety point of view.

TVS MAX4R 2021-2022 Weight & Height

The seat height of TVS MAX4R 2021-2022 is N/A and the kerb weight is N/A. In other dimensions MAX4R 2021-2022 has 2005 mm Length, 733 mm Width, 1055 mm Height, 1240 mm Wheelbase, 181 mm Ground Clearance, commuter Body Type.

Comfort in TVS MAX4R 2021-2022

From Comfort perspective, MAX4R 2021-2022 have Pillion Footrest, Analogue Console Type, Analogue Instrument Console, Split Seat Seat Style, Self Start Start Type, USB Charger Port.

TVS MAX4R 2021-2022 Body

TVS MAX4R 2021-2022 has Telescopic hydraulic forks suspensions with 70/80-17 front tyre and 4 Shock Absorbers suspensions with 80/80-17 rear tyre. It comes with a Spoke.

TVS MAX4R 2021-2022 Alternatives

Main Competitors of MAX4R 2021-2022 bike are Hero HF Deluxe, TVS Sport, Hero Splendor Plus, Hero Splendor Plus Xtec, Honda Shine, Honda Shine 100, Bajaj Platina 110, Hero HF 100, TVS Radeon, TVS Raider 125.

Keep scrolling to explore detailed configuration, features and technical specs of MAX4R 2021-2022.
Key HighlightsTVS MAX4R 2021-2022
Engine Capacity109.7 cc
Power8.28 bhp @ 7500 rpm
Read more

Explore more on TVS MAX4R 2021-2022

TVS MAX4R  2021-2022
₹ 40,405 - ₹ 45,500 *
(Price before discontinued)
TVS MAX4R 2021-2022 is Discontinued.

Key Specifications of MAX4R 2021-2022

Front Brake TypeDrum
Rear Brake TypeDrum
Wheel TypeSpoke
TachometerAnalogue
OdometerAnalogue
Read more
Ad

Detailed Specifications of TVS MAX4R 2021-2022

Select Variants

Brakes, Suspension & Tyres

Front Wheel Size70/80-17
Rear Wheel Size80/80-17
Wheel TypeSpoke
Front SuspensionTelescopic hydraulic forks
Rear Suspension4 Shock Absorbers
Front Tyre Size70/80-17
Rear Tyre Size80/80-17
Front TypeDrum
Rear Disc/Drum Size130 mm
Rear TypeDrum
Tubeless TyresNo
Tyre Size SpareNo

Comfort & Convenience

Call/SMS AlertsNo
Pillion BackrestNo
Pillion FootrestYes
GPS & NavigationNo
Console TypeAnalogue
Engine Kill SwitchNo
Instrument ConsoleAnalogue
Seat StyleSplit Seat
Start TypeSelf Start
USB Charger PortYes

Engine & Transmission

IgnitionCDI
Engine Capacity109.7 cc
Engine Type4-stroke, single-cylinder, air-cooled
No. of Cylinders1
No. of valves per cylinder2
Transmission TypeManual
Bore x Stroke53.5 mm x 48.8 mm
Configurationsingle cylinder
Cooling typeAir Cooled
FuellingCfi
Max Power 8.28 bhp @ 7500 rpm
Max Torque8.33 Nm @ 5500 rpm

Instrumentation

Riding Modes SwitchNo
Touch Screen DisplayNo
Fuel level guageAnalogue
TachometerAnalogue
SpeedometerAnalogue
OdometerAnalogue

Safety

Hazard Warning IndicatorYes
Hazard Warning SwitchYes
Radial TyresYes
Pillion GrabrailYes
Turn SignalHalogen
ABS - Anti-lock braking system CBS
Slipper ClutchNo

Dimensions & Capacity

Length2005 mm
Width733 mm
Height1055 mm
Wheelbase1240 mm
Ground Clearance181 mm
Body Typecommuter

Exterior

LED headlightNo

Warranty

Basic Warranty5 Years/60000 km
