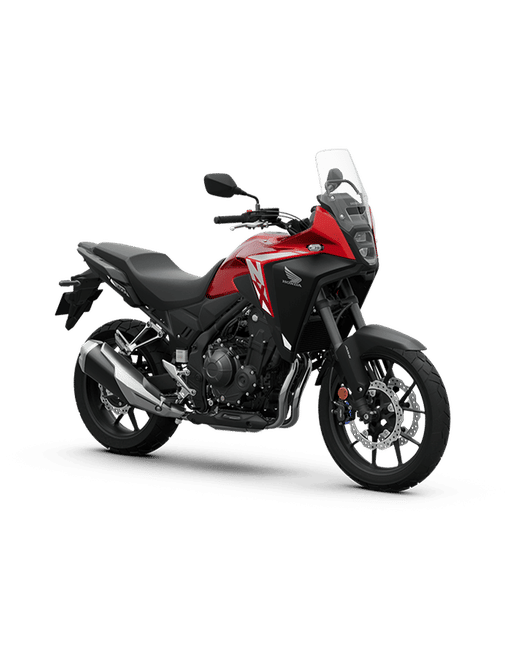

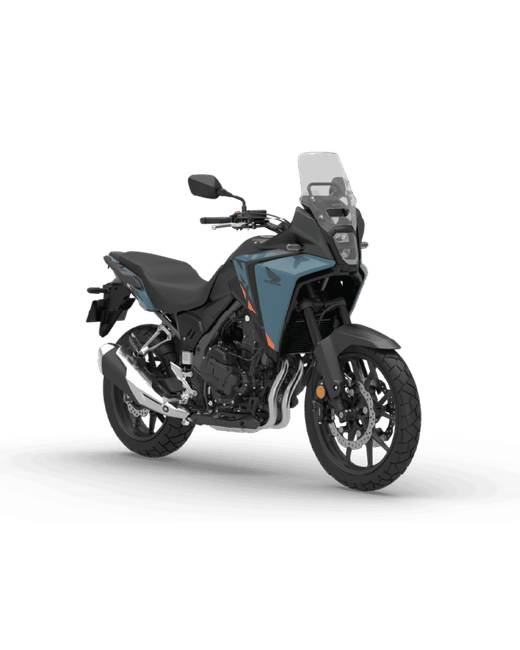

Honda NX500 Specifications

NX500 is available in India at a price tag of ₹ 7.17 Lakh. NX500 is powered by a 2 cylinder, 471 cc, Liquid-cooled DOHC in-line 2-cylinder. It is able to produce 43 Nm @ 6500 rpm torque and 46.9 bhp @ 8600 rpm power.

Honda NX500 Safety Features

This Adventure bike comes loaded with AHO (Automatic Headlight On), Radial Tyres, Side Stand Alarm, Pass Light, Pillion Grabrail, LED Turn Signal, ABS - Anti-lock braking system , Assist And Slipper Clutch Slipper Clutch, Traction Control System from safety point of view.

Honda NX500 Weight & Height

The seat height of Honda NX500 is 830 mm and the kerb weight is 196 kg. In other dimensions NX500 has 2165 mm Length, 830 mm Width, 1415 mm Height, 1445 mm Wheelbase, 180 mm Ground Clearance, 17.5 Litres Fuel Tank Capacity , Adventure Body Type.

Comfort in Honda NX500

From Comfort perspective, NX500 have Call/SMS Alerts, Pillion Footrest, GPS & Navigation, Digital Console Type, Engine Kill Switch, Digital Instrument Console, Single Seat Seat Style, Side Stand Indicator, Self Start Start Type, Optional USB Charger Port.

Honda NX500 Body

Honda NX500 has Show41mSFF-Bupside-dow(USDfronforks suspensions with 110/80 - R19 front tyre and Pro-Link moNo-suspension suspensions with 160/60 - R17 rear tyre. It comes with a Steel Diamond frame and Alloy.

Honda NX500 Alternatives

Main Competitors of NX500 bike are Benelli TRK 502, Kawasaki Eliminator, Kawasaki Versys 650, Honda Rebel 500, Kawasaki Ninja 500, Kawasaki Z650, Royal Enfield Himalayan 450, KTM 390 Adventure, BMW G 310 GS, Kawasaki KLX 300R.

Honda NX500 Latest Price

NX500 is available in India starting from ₹ 7.17 Lakh with it's least expensive variant being STD. Most expensive variant of NX500 is STD priced at ₹ 7.17 Lakh.

Keep scrolling to explore detailed configuration, features and technical specs of NX500.
Key HighlightsHonda NX500
Engine Capacity471 cc
Power46.9 bhp @ 8600 rpm
Seat Height830 mm
Weight196 kg
Read more

Explore more on Honda NX500

Honda NX500

4.3
₹ 6.33 Lakh *
471cc 27.78 kmpl
Don't miss out on Latest Offers!

Key Specifications of NX500

Displacement471 cc
Kerb Weight196 kg
Number of Cylinders2
Fuel Tank Size17.5 Litres
ABS - Anti-lock braking systemYes
Read more
Ad

Detailed Specifications of Honda NX500

Brakes, Suspension & Tyres

Braking SystemDual Channel ABS
Calliper TypeFront 4 Piston Rear 1 Piston
Front Disc Size296
Front Suspension Preload AdjusterNo
Front Wheel Size19
Rear Suspension Preload AdjusterYes
Rear Wheel Size17
Wheel TypeAlloy
Front SuspensionShow41mSFF-Bupside-dow(USDfronforks
Rear SuspensionPro-Link moNo-suspension
Front Tyre Size110/80 - R19
Rear Tyre Size160/60 - R17
Front TypeDisc
Rear Disc/Drum Size240 mm
Rear TypeDisc
Tubeless TyresYes
Tyre Size SpareNo

Comfort & Convenience

Call/SMS AlertsYes
Front Storage BoxNo
Geo FencingNo
Pillion BackrestNo
Pillion FootrestYes
Under Seat StorageNo
GPS & NavigationYes
Console TypeDigital
Engine Kill SwitchYes
Instrument ConsoleDigital
Seat StyleSingle Seat
Side Stand IndicatorYes
Start TypeSelf Start
USB Charger PortOptional

Engine & Transmission

Gear Shifting Pattern1 Down 5 Up
Spark Plugs1 Per Cylinder
Engine Capacity471 cc
Engine TypeLiquid-cooled DOHC in-line 2-cylinder
No. of Cylinders2
Transmission TypeManual
Battery Capacity127.4 kwh
Bore x Stroke67 mm x 66.8 mm
ConfigurationTwin Cylinder
Cooling typeLiquid Cooled
FuellingFuel Injection
Max Power 46.9 bhp @ 8600 rpm
Max Torque43 Nm @ 6500 rpm
Mileage (Claimed)27.78 kmpl
Number of Gears6 Speed

Instrumentation

Riding Modes SwitchNo
Fuel level guageYes
Gear IndicatorYes
TachometerDigital
SpeedometerDigital
OdometerDigital

Safety

AHO (Automatic Headlight On)Yes
Radial TyresYes
Side Stand AlarmYes
Pass LightYes
Pillion GrabrailYes
Turn SignalLED
ABS - Anti-lock braking system Yes
Slipper ClutchAssist And Slipper Clutch
Traction Control SystemYes

Dimensions & Capacity

Length2165 mm
Width830 mm
Height1415 mm
Wheelbase1445 mm
Ground Clearance180 mm
Fuel Tank Capacity 17.5 Litres
Body TypeAdventure
Seat Height830 mm
Unladden/Kerb Weight196 kg

Exterior

Daytime Running LightsYes
LED headlightYes

Body & Suspension

Frame TypeSteel Diamond

Entertainment & Communication

MID (Multi Info Display)Yes
