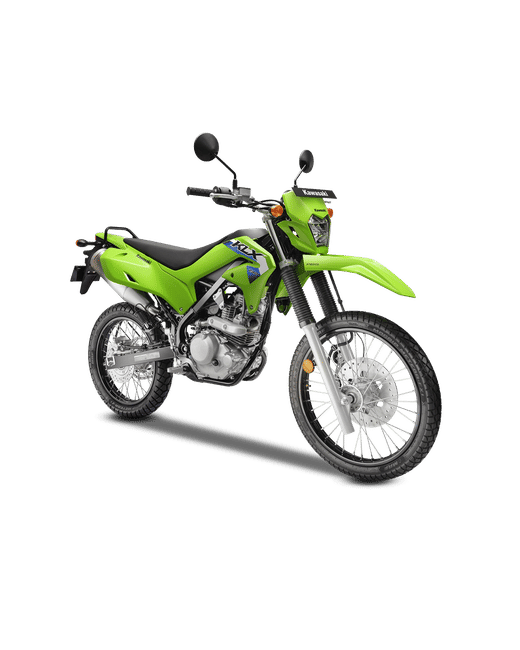

Kawasaki KLX 230 Specifications
KLX 230 is available in India at a price tag of ₹ 3.72 Lakh. KLX 230 is powered by a 1 cylinder, 233 cc, Air-cooled 4-stroke single-cylinder.
It is able to produce 18.3 Nm @ 6400 rpm torque and 17.8 bhp @ 8000 rpm power.
Keep scrolling to explore detailed configuration, features and technical specs of KLX 230.
Kawasaki KLX 230 Safety Features
This Dirt bike comes loaded with Hazard Warning Indicator, Hazard Warning Switch, Pass Light, Pillion Grabrail, LED Turn Signal, ABS - Anti-lock braking system from safety point of view.Kawasaki KLX 230 Weight & Height
The seat height of Kawasaki KLX 230 is 880 mm and the kerb weight is 139 kg. In other dimensions KLX 230 has 2090 mm Length, 845 mm Width, 1150 mm Height, 1370 mm Wheelbase, 265 mm Ground Clearance, 7.6 Litres Fuel Tank Capacity , Dirt Body Type.Comfort in Kawasaki KLX 230
From Comfort perspective, KLX 230 have Call/SMS Alerts, Low Battery Indicator, Pillion Footrest, Service Reminder Indicator, Digital Console Type, Engine Kill Switch, Digital Instrument Console, Single Seat Style, Electric Start Start Type.Kawasaki KLX 230 Body
Kawasaki KLX 230 has Telescopic fork suspensions with 70/100-21 front tyre and Uni-Trak suspensions with 110/100-18 rear tyre. It comes with a Perimeter high-tensile steel frame and Spoked.Kawasaki KLX 230 Alternatives
Main Competitors of KLX 230 bike are Kawasaki KX65, Kawasaki KLX 140R F, KTM 390 Enduro R, Kawasaki KX 85, Royal Enfield Continental GT 650, Kawasaki KLX 140, Royal Enfield Interceptor 650, Royal Enfield Classic 650, KTM RC 390, Kawasaki Ninja 300.Kawasaki KLX 230 Latest Price
KLX 230 is available in India starting from ₹ 3.72 Lakh with it's least expensive variant being STD. Most expensive variant of KLX 230 is STD priced at ₹ 3.72 Lakh.Keep scrolling to explore detailed configuration, features and technical specs of KLX 230.
Key Highlights | Kawasaki KLX 230 |
---|---|
Engine Capacity | 233 cc |
Power | 17.8 bhp @ 8000 rpm |
Seat Height | 880 mm |
Weight | 139 kg |
Explore more on Kawasaki KLX 230

Don't miss out on Latest Offers!
Key Specifications of KLX 230
Key | Specs Value |
---|---|
Displacement | 233 cc |
Fuel Tank Capacity | 7.6 Litres |
ABS - Anti-lock braking system | Yes |
Instrument Cluster | Digital |
Frame Type | Perimeter high-tensile steel |
Ad
Detailed Specifications of Kawasaki KLX 230
Brakes, Suspension & Tyres
Braking System | Dual Channel Abs |
Calliper Type | Fixed |
Front Disc Size | 240 |
Front Suspension Preload Adjuster | No |
Front Wheel Size | 70/100-21 |
Rear Suspension Preload Adjuster | Yes |
Rear Wheel Size | 110/100-18 |
Wheel Type | Spoked |
Front Suspension | Telescopic fork |
Rear Suspension | Uni-Trak |
Front Tyre Size | 70/100-21 |
Rear Tyre Size | 110/100-18 |
Front Type | Disc |
Rear Disc/Drum Size | 250 mm |
Rear Type | Disc |
Tubeless Tyres | No |
Comfort & Convenience
Call/SMS Alerts | Yes |
Geo Fencing | No |
Low Battery Indicator | Yes |
Low Oil Indicator | No |
Pillion Backrest | No |
Pillion Footrest | Yes |
Service Reminder Indicator | Yes |
GPS & Navigation | No |
Console Type | Digital |
Engine Kill Switch | Yes |
Instrument Console | Digital |
Seat Style | Single |
Shutter Lock | No |
Side Stand Indicator | No |
Start Type | Electric Start |
USB Charger Port | No |
Engine & Transmission
Gear Shifting Pattern | 1 Down 5 Up |
Ignition | Digital |
Spark Plugs | Yes |
Engine Capacity | 233 cc |
Engine Type | Air-cooled 4-stroke single-cylinder |
No. of Cylinders | 1 |
No. of valves per cylinder | 2 |
Transmission Type | Manual |
Bore x Stroke | 67 mm x 66 mm |
Configuration | Single Cylinder |
Cooling type | Air Cooled |
Fuelling | Fuel injection |
Max Power | 17.8 bhp @ 8000 rpm |
Max Torque | 18.3 Nm @ 6400 rpm |
Number of Gears | 6 |
Instrumentation
Riding Modes Switch | No |
Touch Screen Display | No |
Fuel level guage | Digital |
Tachometer | Digital |
Speedometer | Digital |
Odometer | Digital |
Safety
AHO (Automatic Headlight On) | No |
Hazard Warning Indicator | Yes |
Hazard Warning Switch | Yes |
Side Stand Alarm | No |
Pass Light | Yes |
Pillion Grabrail | Yes |
Turn Signal | LED |
ABS - Anti-lock braking system | Yes |
Traction Control System | No |
Dimensions & Capacity
Length | 2090 mm |
Width | 845 mm |
Height | 1150 mm |
Wheelbase | 1370 mm |
Ground Clearance | 265 mm |
Fuel Tank Capacity | 7.6 Litres |
Body Type | Dirt |
Seat Height | 880 mm |
Unladden/Kerb Weight | 139 kg |
Exterior
Daytime Running Lights | Yes |
LED headlight | Yes |
Body & Suspension
Frame Type | Perimeter high-tensile steel |
