Yamaha Ray 2012-2016 Precious Edition STD
4.0 (60)
Yamaha Ray Z Precious Edition STD is Discontinued.
N/A
*Ex-Showroom Price(Price before discontinued)Ad
Colours of Ray 2012-2016 Precious Edition STD
Ray 2012-2016 ColoursKey Highlights of Ray 2012-2016 Precious Edition STD
| Key | Specs Value |
|---|---|
| Number of gears | Automatic |
| Seat Height | 760 mm |
| Mileage | 62 kmpl |
| Fuel Tank Capacity | 5 Litres |
| Kerb Weight | 104 kg |
Yamaha Ray Z Precious Edition STD Overview
Price: The ex-showroom price of Ray 2012-2016 Precious Edition STD was and the on road price was .
Mileage: This variant claimed an ARAI Mileage of 62 kmpl.

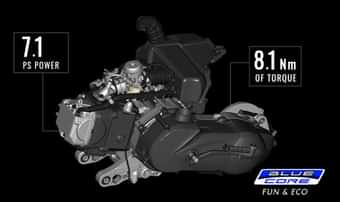

Performance: It was powered by a 113 cc engine. The Four-stroke, air-cooled, single-cylinder engine with a SOHC puts out a power of 7.2 PS @ 7500 rpm and generates a torque of 8 Nm @ 5000 rpm.
Specs & Features: Ray 2012-2016 Precious Edition STD comes with Pillion Footrest, Under Seat Storage, Analogue Console Type, Analogue Instrument Console and Electric Start Start Type.
Mileage: This variant claimed an ARAI Mileage of 62 kmpl.
Performance: It was powered by a 113 cc engine. The Four-stroke, air-cooled, single-cylinder engine with a SOHC puts out a power of 7.2 PS @ 7500 rpm and generates a torque of 8 Nm @ 5000 rpm.
Specs & Features: Ray 2012-2016 Precious Edition STD comes with Pillion Footrest, Under Seat Storage, Analogue Console Type, Analogue Instrument Console and Electric Start Start Type.
Ray 2012-2016 Precious Edition STD Specifications
Brakes, Suspension & Tyres
| Front Disc Size | 130 |
| Front Wheel Size | 10 inch |
| Rear Wheel Size | 10 inch |
| Wheel Type | Alloy |
| Front Suspension | Telescopic |
| Rear Suspension | Unit swing |
| Front Tyre Size | 90/100-10 |
| Rear Tyre Size | 90/100-10 |
| Rear Disc/Drum Size | 130 mm |
| Rear Type | Drum |
| Tubeless Tyres | Yes |
Comfort & Convenience
| Call/SMS Alerts | No |
| Front Storage Box | No |
| Geo Fencing | No |
| Low Battery Indicator | No |
| Low Oil Indicator | No |
| Pillion Backrest | No |
| Pillion Footrest | Yes |
| Under Seat Storage | Yes |
| GPS & Navigation | No |

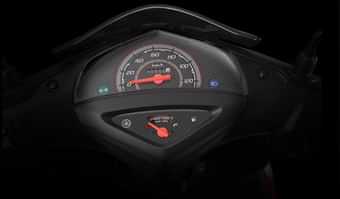

| Console Type | Analogue |
| Engine Kill Switch | No |
| Instrument Console | Analogue |
| Side Stand Indicator | No |
| Start Type | Electric Start |
| USB Charger Port | No |
Engine & Transmission
| Spark Plugs | 1 Per Cylinder |
| Engine Capacity | 113 cc |
| Engine Type | Four-stroke, air-cooled, single-cylinder engine with a SOHC |
| No. of Cylinders | 1 |
| No. of valves per cylinder | 2 |
| Transmission Type | Automatic |
| Top Speed | 86 kmph |
| Cooling type | Air Cooled |
| Max Power | 7.2 PS @ 7500 rpm |
| Max Torque | 8 Nm @ 5000 rpm |
| Mileage (Claimed) | 62 kmpl |
| Number of Gears | Automatic |
Instrumentation
| Touch Screen Display | No |
| Tachometer | Analogue |
| Speedometer | Analogue |
Safety
| Radial Tyres | No |
| Side Stand Alarm | No |
| Pass Light | No |
| Pillion Grabrail | Yes |
| ABS - Anti-lock braking system | No |
Dimensions & Capacity
| Length | 1835 mm |
| Width | 675 mm |
| Height | 1090 mm |
| Wheelbase | 1270 mm |
| Ground Clearance | 128 mm |
| Fuel Tank Capacity | 5 Litres |
| Body Type | Scooter |
| Seat Height | 760 mm |
| Unladden/Kerb Weight | 104 kg |
Body & Suspension
| Frame Type | Underbone |
