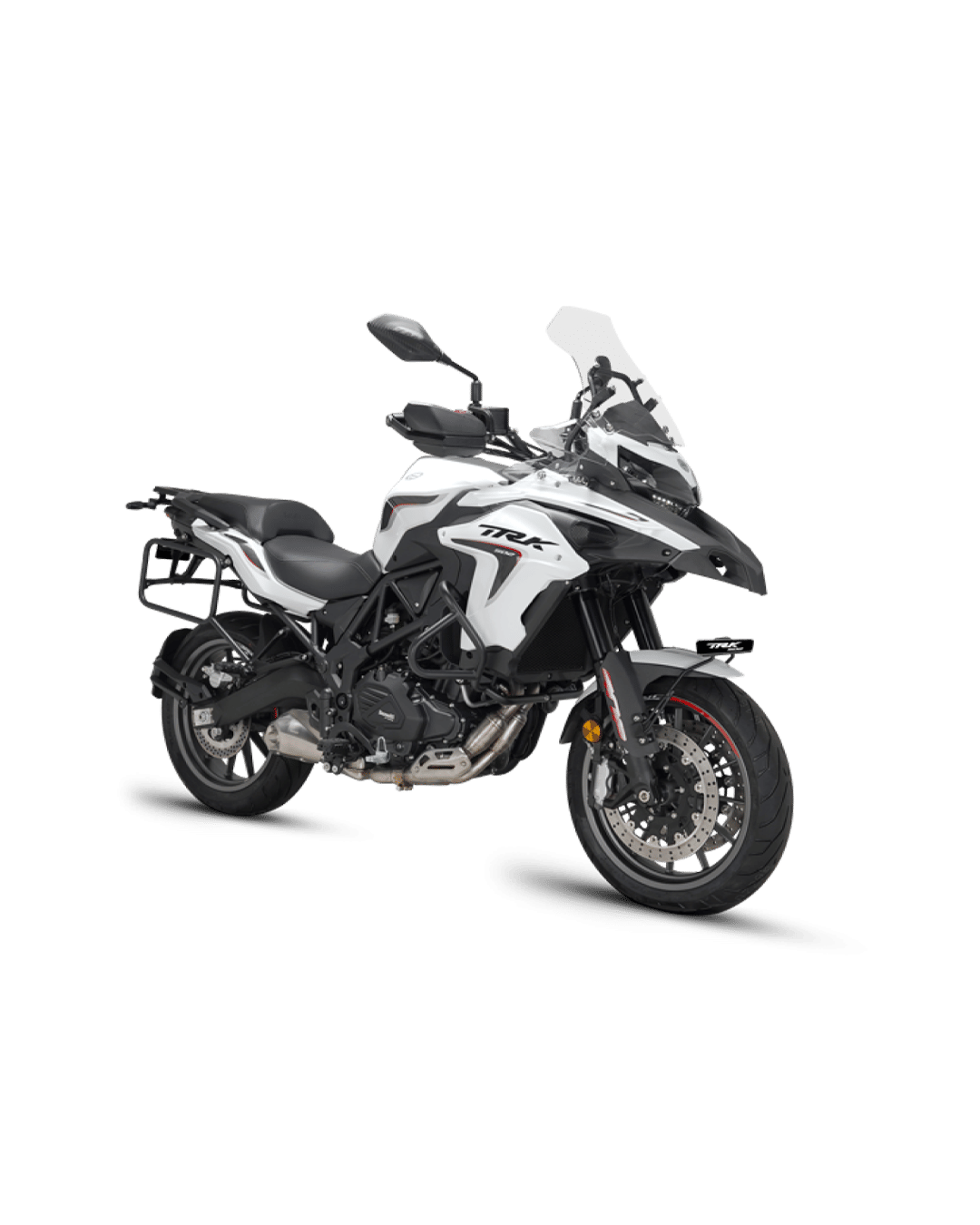

Benelli TRK 502 Specifications
Benelli TRK 502 have 3 variants ranging from  ₹ 7.13 Lakh to  ₹ 7.87 Lakh. TRK 502 is powered by a 2 cylinder,  500 cc, Liquid-cooled& 4-stroke& 2-cylinder.
      It is able to produce  46 Nm @ 6000 rpm torque   and  47.5 bhp  @ 8500 rpm power.

Keep scrolling to explore detailed configuration, features and technical specs of TRK 502.
Benelli TRK 502 Safety Features
This Adventure bike comes loaded with Hazard Warning Indicator, Pass Light, Pillion Grabrail, LED Turn Signal, ABS - Anti-lock braking system , Slipper Clutch from safety point of view.Benelli TRK 502 Weight & Height
The seat height of Benelli TRK 502 is 800 mm and the kerb weight is 235 kg. In other dimensions TRK 502 has 2200 mm Length, 915 mm Width, 1450 mm Height, 1505 mm Wheelbase, 190 mm Ground Clearance, 20 Litres Fuel Tank Capacity , 3.2 Litres Engine Oil Capacity, Adventure Body Type.Comfort in Benelli TRK 502
From Comfort perspective, TRK 502 have Call/SMS Alerts, Low Oil Indicator, Pillion Footrest, GPS & Navigation, Semi -Digital Console Type, Engine Kill Switch, Semi - Digital Instrument Console, Spilt Seat Style, Electric Start Start Type, USB Charger Port.Benelli TRK 502 Body
Benelli TRK 502 has Inverted Telescopic suspensions with 120/70 R17 front tyre and Mono-shock-absorber suspensions with 160/60 R17 rear tyre. It comes with a Steel trellis chassis frame and Alloy.Benelli TRK 502 Alternatives
Main Competitors of TRK 502 bike are Honda NX500, Kawasaki Versys 650, Kawasaki Eliminator, Kawasaki Z650, Honda Rebel 500, Kawasaki Ninja 500, KTM 85 SX, Kawasaki Vulcan S, Kawasaki Ninja 650, Kawasaki W800 Street.Benelli TRK 502 Latest Price
TRK 502 is available in India starting from ₹ 7.13 Lakh with it's least expensive variant being STD. Most expensive variant of TRK 502 is X Yellow priced at ₹ 7.87 Lakh.Keep scrolling to explore detailed configuration, features and technical specs of TRK 502.
| Key Highlights | Benelli TRK 502 |
|---|---|
| Engine Capacity | 500 cc |
| Power | 47.5 bhp @ 8500 rpm |
| Seat Height | 800 mm |
| Weight | 235 kg |
Explore more on Benelli TRK 502
Don't miss out on Latest Offers!
Key Specifications of TRK 502
| Key | Specs Value |
|---|---|
| Displacement | 500 cc |
| Kerb Weight | 235 kg |
| Number of Cylinders | 2 |
| Fuel Tank Size | 20 Litres |
| Top Speed | 165 kmph |
Ad
Detailed Specifications of Benelli TRK 502
Select Variants
Brakes, Suspension & Tyres
| Braking System | Dual Channel ABS |
| Calliper Type | Fixed |
| Front Disc Size | 320 |
| Front Wheel Size | R17 |
| Rear Wheel Size | R17 |
| Wheel Type | Alloy |
| Front Suspension | Inverted Telescopic |
| Rear Suspension | Mono-shock-absorber |
| Front Tyre Size | 120/70 R17 |
| Rear Tyre Size | 160/60 R17 |
| Front Type | Disc |
| Rear Disc/Drum Size | 260 mm |
| Rear Type | Disc |
| Tubeless Tyres | Yes |
| Tyre Size Spare | No |
Comfort & Convenience
| Call/SMS Alerts | Yes |
| Low Oil Indicator | Yes |
| Pillion Backrest | No |
| Pillion Footrest | Yes |
| Service Reminder Indicator | No |
| GPS & Navigation | Yes |
| Console Type | Semi -Digital |
| Distance to Empty Indicator | No |
| Engine Kill Switch | Yes |
| Instrument Console | Semi - Digital |
| Seat Style | Spilt |
| Start Type | Electric Start |
| USB Charger Port | Yes |
Engine & Transmission
| Ignition | TCI |
| Engine Capacity | 500 cc |
| Engine Type | Liquid-cooled& 4-stroke& 2-cylinder |
| No. of Cylinders | 2 |
| No. of valves per cylinder | 4 |
| Transmission Type | Manual |
| Battery Capacity | 0.06 kwh |
| Top Speed | 165 kmph |
| Bore x Stroke | 69 mm x 66.8 mm |
| Configuration | Twin Cylinder |
| Cooling type | Liquid Cooled |
| Fuelling | EFI |
| Max Power | 47.5 bhp @ 8500 rpm |
| Max Torque | 46 Nm @ 6000 rpm |
| Mileage (Claimed) | 20 kmpl |
| Number of Gears | 6 Speed |
Instrumentation
| Riding Modes Switch | No |
| Fuel level guage | Digital |
| Gear Indicator | Yes |
| Tachometer | Digital |
| Speedometer | Digital |
| Odometer | Digital |
Safety
| AHO (Automatic Headlight On) | No |
| Hazard Warning Indicator | Yes |
| Side Stand Alarm | No |
| Pass Light | Yes |
| Pillion Grabrail | Yes |
| Turn Signal | LED |
| ABS - Anti-lock braking system | Yes |
| Slipper Clutch | Yes |
| Traction Control System | No |
Dimensions & Capacity
| Length | 2200 mm |
| Width | 915 mm |
| Height | 1450 mm |
| Wheelbase | 1505 mm |
| Ground Clearance | 190 mm |
| Fuel Tank Capacity | 20 Litres |
| Engine Oil Capacity | 3.2 Litres |
| Body Type | Adventure |
| Seat Height | 800 mm |
| Unladden/Kerb Weight | 235 kg |
Exterior
| Daytime Running Lights | Yes |
| LED headlight | Yes |
Warranty
| Basic Warranty | 2 Years/Unlimited kms |
Body & Suspension
| Frame Type | Steel trellis chassis |
Ad
Add your vehicle to our online garage
- Free valuation of your vehicle
- 1Mn+ users joined our Community
- 10+ experts to give advice

Which vehicle do you own?
Select your vehicle
Add vehicle
TRK 502 Competitors Specifications
User Reviews
No Reviews FoundTop Benelli Bikes
Have More Questions  about Benelli TRK 502?
Get answers from our 91wheels experts

Ask 91Wheels Experts
Explore More Options
Benelli TRK 502 FAQs
What is the fuel tank capacity of Benelli TRK 502?
Fuel tank capacity of Benelli TRK 502 is 20 Litres.
How much is the Engine Capacity of Benelli TRK 502?
Engine Capacity of Benelli TRK 502 is 500 cc.
What is the seat height of Benelli TRK 502?
Seat Height of Benelli TRK 502 is 800 mm.
