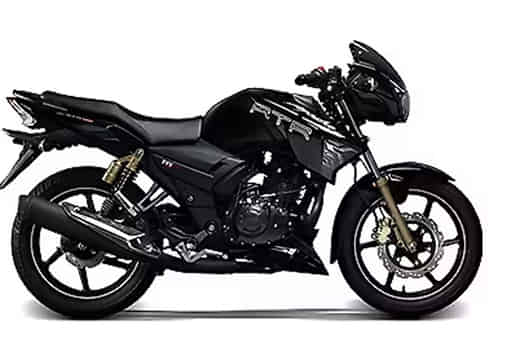

TVS Apache RTR 180 2009-2020 Specifications

TVS Apache RTR 180 2009-2020 have 3 variants ranging from 85488 to 86235. Apache RTR 180 2009-2020 is powered by a 1 cylinder, 177 cc, single-cylinder, 4-stroke, air-cooled engine. It is able to produce 15.5 Nm @ 7000 rpm torque and 16.79 bhp @ 8500 rpm power.

TVS Apache RTR 180 2009-2020 Safety Features

This Sports bike comes loaded with Radial Tyres, Halogen Turn Signal, Pillion Grabrail, ABS - Anti-lock braking system from safety point of view.

TVS Apache RTR 180 2009-2020 Weight & Height

The seat height of TVS Apache RTR 180 2009-2020 is 790 mm and the kerb weight is N/A. In other dimensions Apache RTR 180 2009-2020 has 2085 mm Length, 730 mm Width, 1105 mm Height, 1326 mm Wheelbase, 180 mm Ground Clearance, 1.2 Litres Engine Oil Capacity, Sports Body Type.

Comfort in TVS Apache RTR 180 2009-2020

From Comfort perspective, Apache RTR 180 2009-2020 have Pillion Footrest, Self start Start Type, USB Charger Port, Digital Instrument Console, Semi - digital Console Type, Single seat Seat Style.

TVS Apache RTR 180 2009-2020 Body

TVS Apache RTR 180 2009-2020 has Telescopic forks suspensions with 90/90-17 front tyre and Monotube Inverted Gas-filled (MIG) shock absorbers with spring aid suspensions with 120/70-17 rear tyre.

TVS Apache RTR 180 2009-2020 Alternatives

Main Competitors of Apache RTR 180 2009-2020 bike are Bajaj Pulsar 125, Hero Xtreme 125R, Bajaj Pulsar NS 125, Bajaj Pulsar N125, Bajaj Pulsar 150 Single Disc, Hero Xtreme 160R BS6, Bajaj Pulsar 150 Twin Disc, TVS Apache RTR 160, Bajaj Pulsar N150, TVS Apache RTR 160 4V.

Keep scrolling to explore detailed configuration, features and technical specs of Apache RTR 180 2009-2020.
Key HighlightsTVS Apache RTR 180 2009-2020
Engine Capacity177 cc
Power16.79 bhp @ 8500 rpm
Seat Height790 mm
Read more

Explore more on TVS Apache RTR 180 2009-2020

TVS Apache RTR 180 2009-2020

TVS Apache RTR 180 2009-2020

₹ 85,488 - ₹ 86,235 *
(Price before discontinued)
TVS Apache RTR 180 2009-2020 is Discontinued.

Key Specifications of Apache RTR 180 2009-2020

Number of gears5
Seat Height790 mm
Front Brake Typedisc
Rear Brake TypeDisc
Instrument ConsoleDigital
Read more
Ad

Detailed Specifications of TVS Apache RTR 180 2009-2020

Select Variants

Brakes, Suspension & Tyres

Front Wheel Size90/90-17
Braking SystemSingle Channel ABS
Front Disc Size270
Rear Wheel Size110/80-17
Front SuspensionTelescopic forks
Rear SuspensionMonotube Inverted Gas-filled (MIG) shock absorbers with spring aid
Front Tyre Size90/90-17
Rear Tyre Size120/70-17
Tubeless TyresYes
Rear TypeDisc
Front Typedisc
Rear Disc/Drum Size200 mm
Tyre Size SpareNo

Engine & Transmission

Gear Shifting Pattern1-down 4-up
Engine Capacity177 cc
Engine Typesingle-cylinder, 4-stroke, air-cooled engine
No. of Cylinders1
No. of valves per cylinder2
Transmission TypeManual
Max Power 16.79 bhp @ 8500 rpm
Number of Gears5
FuellingRTFi
Max Torque15.5 Nm @ 7000 rpm
Cooling typeair cooled
Bore x Stroke62.5 mm x 57.8 mm
ConfigurationSingle Cylinder

Safety

Radial TyresYes
Turn SignalHalogen
Pillion GrabrailYes
ABS - Anti-lock braking system Yes

Instrumentation

Riding Modes SwitchNo
Touch Screen DisplayNo
Fuel level guageDigital
SpeedometerDigital

Comfort & Convenience

Pillion FootrestYes
Call/SMS AlertsNo
GPS & NavigationNo
Start TypeSelf start
USB Charger PortYes
Instrument ConsoleDigital
Console TypeSemi - digital
Side Stand IndicatorNo
Seat StyleSingle seat

Dimensions & Capacity

Length2085 mm
Width730 mm
Height1105 mm
Wheelbase1326 mm
Ground Clearance180 mm
Engine Oil Capacity1.2 Litres
Body TypeSports
Seat Height790 mm

Exterior

Daytime Running LightsYes
LED headlightNo

Warranty

Basic Warranty5 Years / 60000 Kms
