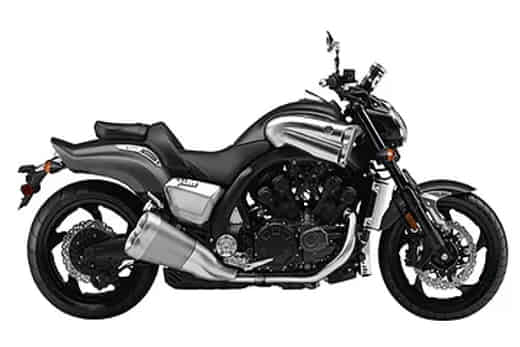

Yamaha VMAX 2009-2020 Specifications

VMAX 2009-2020 is available in India at a price tag of 3128873. VMAX 2009-2020 is powered by a 4 cylinder, 1679 cc, Liquid Cooled 4- Stroke Dohc 4- Valve V- Type 4- Cylinder. It is able to produce 166.8 Nm @ 6500 rpm torque and 200 PS @ 9000 rpm power.

Yamaha VMAX 2009-2020 Safety Features

This Cruiser bike comes loaded with Radial Tyres, Pass Light, Pillion Grabrail, ABS - Anti-lock braking system from safety point of view.

Yamaha VMAX 2009-2020 Weight & Height

The seat height of Yamaha VMAX 2009-2020 is 775 mm and the kerb weight is 310 kg. In other dimensions VMAX 2009-2020 has 2395 mm Length, 820 mm Width, 1190 mm Height, 1700 mm Wheelbase, 140 mm Ground Clearance, 15 Litres Fuel Tank Capacity , Cruiser Body Type.

Comfort in Yamaha VMAX 2009-2020

From Comfort perspective, VMAX 2009-2020 have Low Oil Indicator, Pillion Footrest, Semi-Digital Console Type, Engine Kill Switch, Semi-Digital Instrument Console, Electric Start Start Type.

Yamaha VMAX 2009-2020 Body

Yamaha VMAX 2009-2020 has Telescopic fork suspensions with 120/70R - 18 front tyre and Swingarm suspensions with 200/50R - 18 rear tyre. It comes with a Aluminium Diamond-Shaped frame and Alloy.

Yamaha VMAX 2009-2020 Alternatives

Main Competitors of VMAX 2009-2020 bike are Harley-Davidson Breakout 117, Indian Motorcycle Springfield, Kawasaki Ninja H2 SX, Ducati Panigale V4, Indian Motorcycle Springfield Dark Horse, Kawasaki Ninja H2 SX SE, BMW K 1600, Indian Motorcycle Chieftain Dark Horse, Harley-Davidson Fat Boy, Indian Motorcycle Chieftain Limited.

Keep scrolling to explore detailed configuration, features and technical specs of VMAX 2009-2020.
Key HighlightsYamaha VMAX 2009-2020
Engine Capacity1679 cc
Power200 PS @ 9000 rpm
Seat Height775 mm
Weight310 kg
Read more

Explore more on Yamaha VMAX 2009-2020

Yamaha VMAX 2009-2020
₹ 31.29 Lakh *
(Price before discontinued)
Yamaha VMAX 2009-2020 is Discontinued.

Key Specifications of VMAX 2009-2020

Displacement1679 cc
Max Torque (nm@rpm)166.8 Nm @ 6500 rpm
Max Power (bhp @ rpm)200 PS @ 9000 rpm
Weight310 kg
Number of Cylinders4
Read more
Ad

Detailed Specifications of Yamaha VMAX 2009-2020

Brakes, Suspension & Tyres

Braking SystemDual Channel ABS
Front Disc Size320
Front Wheel Size18 inch
Rear Wheel Size18 inch
Wheel TypeAlloy
Front SuspensionTelescopic fork
Rear SuspensionSwingarm
Front Tyre Size120/70R - 18
Rear Tyre Size200/50R - 18
Front TypeDisc
Rear Disc/Drum Size298 mm
Rear TypeDisc
Tubeless TyresYes

Comfort & Convenience

Call/SMS AlertsNo
Front Storage BoxNo
Geo FencingNo
Low Battery IndicatorNo
Low Oil IndicatorYes
Pillion BackrestNo
Pillion FootrestYes
Under Seat StorageNo
GPS & NavigationNo
Console TypeSemi-Digital
Distance to Empty IndicatorNo
Engine Kill SwitchYes
Instrument ConsoleSemi-Digital
Side Stand IndicatorNo
Start TypeElectric Start
USB Charger PortNo

Engine & Transmission

Spark Plugs1 Per Cylinder
Engine Capacity1679 cc
Engine TypeLiquid Cooled 4- Stroke Dohc 4- Valve V- Type 4- Cylinder
No. of Cylinders4
No. of valves per cylinder2
Transmission TypeManual
Top Speed220 kmph
Bore x Stroke90 x 66 mm
Cooling typeLiquid Cooled
Max Power 200 PS @ 9000 rpm
Max Torque166.8 Nm @ 6500 rpm
Mileage (Claimed)14 kmpl
Number of Gears5 Speed

Instrumentation

Touch Screen DisplayNo
TachometerAnalogue
SpeedometerDigital
OdometerDigital

Safety

Radial TyresYes
Side Stand AlarmNo
Pass LightYes
Pillion GrabrailYes
ABS - Anti-lock braking system Yes

Dimensions & Capacity

Length2395 mm
Width820 mm
Height1190 mm
Wheelbase1700 mm
Ground Clearance140 mm
Fuel Tank Capacity 15 Litres
Body TypeCruiser
Seat Height775 mm
Unladden/Kerb Weight310 kg

Body & Suspension

Frame TypeAluminium Diamond-Shaped
