TVS Jupiter 125 Specifications

TVS Jupiter 125 have 3 variants ranging from Rs. 80.61 K to Rs. 85.08 K. Jupiter 125 is powered by a 1 cylinder, 124.8 cc, Single cylinder, 4 stroke, Air cooled. It is able to produce 10.5 Nm @ 4500 rpm torque and 8.15 PS @ 6500 rpm power with a fuel efficiency/mileage of 50 kmpl.

Comfort in Jupiter 125

From Comfort perspective, Jupiter 125 have Analogue and Digital Console Type, Engine Kill Switch, Digital Fuel level guage, 33 L Luggage Space, Digital Odometer, Analogue Speedometer, Electric Silent Start Start Type.

Jupiter 125 Transmission

Performance of Jupiter 125 is backed by a Automatic transmission.

Jupiter 125 Body

TVS Jupiter 125 has Telescopic Hydraulic suspensions with 90/90-12 54J front tyre and Monotube Inverted Gas filled shock (MIG) with spring aid 3 step adjustable suspensions with 90/90-12 54J rear tyre. It comes with a High Rigidity Underbone type frame and Spoke.

Jupiter 125 Dimensions & Measurements

Jupiter 125 has 1852 mm Length, 681 mm Width, 1168 mm Height, 108 Kg Unladden/Kerb Weight, 1275 mm Wheelbase, 765 mm Seat Height, 163 mm Ground Clearance, 5.1 Litres Fuel Tank Capacity .

Jupiter 125 Alternatives

Main Competitors of Jupiter 125 scooter are Hero Pleasure Plus, Hero Maestro Edge 125, Honda Activa 125, Honda Activa 6G, Hero Destini 125, TVS NTORQ 125.

Jupiter 125 Latest Price

Jupiter 125 is available in India starting from Rs. 80.61 K with it's least expensive variant being Drum. Most expensive variant of Jupiter 125 is Disc priced at Rs. 85.08 K.

Keep scrolling to explore detailed configuration, features and technical specs of Jupiter 125.

VariantsPowerEngine CapacityFuel Tank Capacity
Drum8.15 PS @ 6500 rpm124.8 cc5.1 Litres
Drum Alloy8.15 PS @ 6500 rpm124.8 cc5.1 Litres
Disc8.15 PS @ 6500 rpm124.8 cc5.1 Litres
Read More

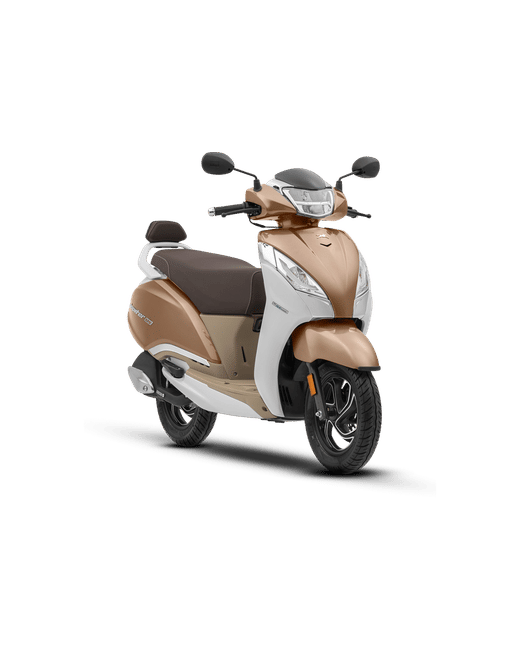

TVS Jupiter 125 scooter

    TVS Jupiter 125

    ₹ 80,605 - ₹ 85,075

    Don't miss out on Latest Offers!

    Key Specifications

    TitleSpecification
    Seat Height765 mm
    Mileage50
    Tyre Size Front90/90-12 54J
    Tyre Size Rear90/90-12 54J
    Fuel Tank Capacity5.1 Litres
    Curb Weight108 Kg
    Rear Brake TypeDrum
    Front SuspensionTelescopic Hydraulic

    Key Features

    TitleSpecification
    Front SuspensionTelescopic Hydraulic
    Rear SuspensionMonotube Inverted Gas filled shock (MIG) with spring aid 3 step adjustable
    Front TypeDisc
    Rear TypeDrum
    Rear Tyre Rim90/90-12 54J
    Wheel TypeSpoke

    Do you own a Car or Bike?

    Share your experience and get 50 coins

    Do you own car or bike

    TVS Jupiter 125 Specifications

    Engine & Transmission

    Engine TypeSingle cylinder, 4 stroke, Air cooled
    Engine Capacity124.8 cc
    Max Power 8.15 PS @ 6500 rpm
    Max Torque10.5 Nm @ 4500 rpm
    No of Cylinders1
    No of valves per cylinder2
    Bore x Stroke53.5 x 55.5 mm
    Fuel TypePetrol
    FuellingFuel Injection
    Cooling typeAir Cooled
    TypeAutomatic

    Performance & Drivetrain

    Mileage (Claimed)50 Kmpl

    Body & Suspension

    Suspension - FrontTelescopic Hydraulic
    Suspension - Rear Monotube Inverted Gas filled shock (MIG) with spring aid 3 step adjustable
    Frame TypeHigh Rigidity Underbone type

    Dimensions & Capacity

    Length1852 mm
    Width681 mm
    Height1168 mm
    Unladden/Kerb Weight108 Kg
    Wheelbase1275 mm
    Seat Height765 mm
    Ground Clearance163 mm
    Fuel Tank Capacity 5.1 Litres

    Wheels, Tyre & Brakes

    Front Disc/Drum Size220 mm
    Rear Disc/Drum Size130 mm
    Front TypeDisc
    Rear TypeDrum
    Front Tyre Size90/90-12 54J
    Rear Tyre Size90/90-12 54J
    Wheel TypeSpoke

    Charging

    Charging SocketYes

    Electricals

    Battery Capacity0.048
    Battery TypeMF Battery

    Comfort & Convenience

    Console TypeAnalogue and Digital
    Engine Kill SwitchYes
    Fuel level guageDigital
    Luggage Space33 L
    OdometerDigital
    SpeedometerAnalogue
    Start TypeElectric Silent Start

    TVS Jupiter 125 competitors specifications

    Have a question in your mind about TVS Jupiter 125?

    From experts

    Have a question in your mind ?

    Latest news on TVS Jupiter 125

    TVS Jupiter 125 FAQs

    • What is the fuel tank capacity of TVS Jupiter 125?

      Fuel tank capacity of TVS Jupiter 125 is 5.1 Litres L.

    • How much is the Engine Capacity of TVS Jupiter 125?

      Engine Capacity of Jupiter 125 is 124.8 cc.

    • What is the power of TVS Jupiter 125?

      Single cylinder, 4 stroke, Air cooled engine of Jupiter 125 can generate 8.15 PS @ 6500 rpm power.

    • What is the seat height of TVS Jupiter 125?

      Seat Height of TVS Jupiter 125 is 765 mm mm.
